A surge tank is part of modern engines and performance vehicles. It works to eliminate an engine stall and to keep optimal performance under extreme conditions. Once you understand the function of a surge tank and why it is important, you will see how it benefits both everyday driving and high-performance applications.
Working of a Surge Tank
A surge tank is a small reservoir that creates a path between the main fuel tank and the engine fuel system. Its sole purpose is to prevent the fuel from starving during rapid acceleration, hard cornering, or while driving on uneven terrains. This is due to the fact that the movement itself can create air pockets and times when fuel is not available in the main tank.

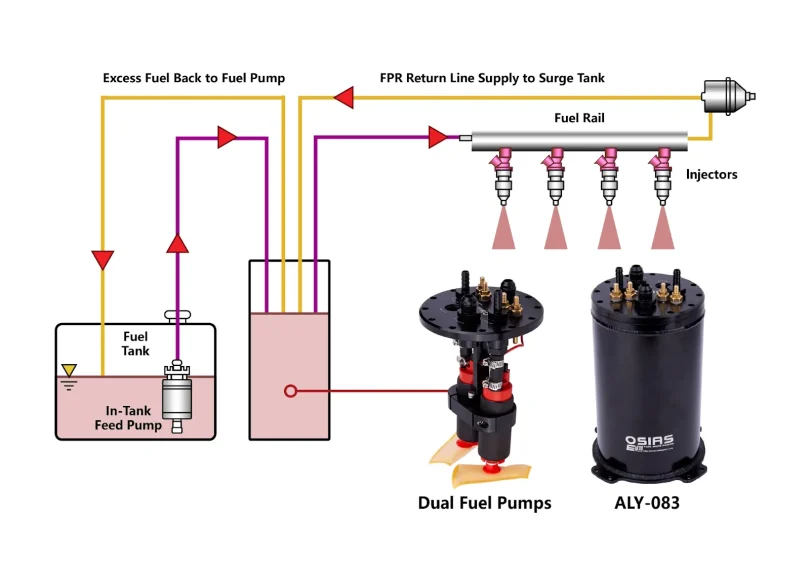

How the Surge Tank Works
Fuel is continuously pumped from the main tank into the surge tank while keeping a full tank at all times. The engine draws fuel directly from the surge tank, which acts as a buffer, thus keeping a stable pressure and flow rate. Additional pumps can be installed in the surge tank for high-performance setup to cater to having high fuel flow according to the demand of the engine. There won’t be any interruptions in the combustion process.
Advantages of a Surge Tank
The most significant advantages of adding a surge tank are as follows:
Non-stop fuel delivery: Provisions of constant and unbreakable pressure with no temporary starvation of fuel while aggressive driving.
Perfect Engine Performance: Complements the right ratios of air-to-fuel, leading to more advanced acceleration and much more reliable power delivery.
It saves the fuel system components: From the stresses they undergo because of inconsistent fuel supply, such as fuel pumps and injectors.
Ideal for Performance Applications: Race vehicles, off-road vehicles, and engines with high-horsepower modifications require this.
In such a way that continuous fuel supply is fed through the surging tank to ensure that your engine runs efficiently and safely under the toughest conditions.
Installation Consideration
A surge tank is usually installed close to the engine and connected to the main fuel tank with dedicated fuel lines. It may make a performance difference to how the installation is done safely. Picking the right surge tank will, especially in emergency situations, satisfy the engine requirements and thus provide durability, consistent performance, and excellent features with the existing fuel system.
Conclusion
A surge tank is more than OSIAS just an accessory-it is an integral part of the same fuel system made for high performance under heavy conditions. It prevents fuel starvation, stabilizes fuel delivery, and aids in optimum performance of the engines. Whether one drives for everyday purposes, off-road adventuring, or racing, a surge tank will ensure that his engines get the fuel flow it needs to operate safely and efficiently under varied conditions.
